How to Choose the Right Speed Increaser Gearbox for Your Equipment?

2026-05-14 11:47:59

In industrial operations, a Speed Increaser Gearbox is a critical component that boosts the rotational speed of equipment, bridging the gap between a low-speed input (from motors or engines) and the high-speed output needed for tasks like fan operation, machine tooling, and power generation. Choosing the wrong Speed Increaser Gearbox can lead to inefficiency, equipment damage, and increased maintenance costs.

1. Understand the Basics of a Speed Increaser Gearbox

Before diving into the selection process, it’s essential to grasp what a speed increaser gearbox is and how it works. Unlike a speed reducer (which slows down rotational speed), a speed increaser gearbox uses gear trains to increase the output speed relative to the input speed. It operates on the principle of gear ratio: the ratio of input speed to output speed is determined by the number of teeth on the gears, with a ratio less than 1 indicating a speed increase.

A quality speed increaser gearbox is designed to handle specific power, torque, and speed requirements while maintaining stability and efficiency. It is widely used in industries like manufacturing, agriculture, aerospace, and renewable energy, where high-speed operation is essential for productivity and performance.

2. Key Factors to Consider When Choosing a Speed Increaser Gearbox

Selecting the right speed increaser gearbox requires careful consideration of your equipment’s needs and operational conditions. Below are the most critical factors to guide your decision, each aligned with industrial best practices and real-world application requirements.

2.1 Define Your Speed and Power Requirements

The first and most important step is to clearly define your speed and power needs. Start by identifying two key parameters: input speed (the speed of the motor or engine connected to the gearbox) and target output speed (the speed your equipment needs to operate efficiently). The difference between these two speeds will determine the required gear ratio of the speed increaser gearbox.

For example, if your motor operates at 1000 RPM and your equipment requires 3000 RPM, you need a speed increaser gearbox with a gear ratio of 1:3. Additionally, you must consider the power (in horsepower or kilowatts) and torque requirements. Remember that torque and speed are inversely proportional: as speed increases, torque decreases. Ensure the speed increaser gearbox can handle the input power and maintain sufficient output torque to drive your equipment without overload.

2.2 Choose the Right Gear Type

Speed increaser gearboxes use different gear types, each with unique characteristics suited to specific applications. The most common types include:

- Spur Gears: Simple design, low cost, and easy to maintain. Ideal for low-speed, light-load applications (e.g., small machinery, toys) but may produce more noise at high speeds due to direct tooth meshing.

- Helical Gears: More efficient and quieter than spur gears, with angled teeth that provide smoother meshing. Suitable for medium to high-speed applications (up to 6000 RPM) and medium loads, such as machine tool spindles and fan speed increasing systems.

- Planetary Gears: Compact design, high efficiency (90%~97%), and large gear ratio range (single-stage ratio up to 10). Perfect for applications with limited space and high-speed requirements, like new energy motor speed increasing and precision instruments.

- Bevel Gears: Designed for intersecting shafts (usually 90 degrees), allowing for direction changes. Suitable for low-speed applications that require a change in drive direction, such as agricultural machinery and small rotating worktables.

Choose the gear type based on your speed range, load capacity, space constraints, and noise requirements.

2.3 Consider Gear Ratio and Number of Stages

The gear ratio of a speed increaser gearbox determines how much the output speed is increased relative to the input speed. Gear ratios can be achieved with single-stage or multi-stage gear trains:

- Single-Stage: A single set of gears, simple in design and high in efficiency (85%~98%). Suitable for small speed increases (gear ratio up to 5 for cylindrical gears).

- Multi-Stage: Multiple sets of gears, allowing for larger speed increases (total ratio = product of each stage’s ratio). Ideal for applications requiring a gear ratio greater than 5, but note that each additional stage reduces efficiency by 3%~5% and increases complexity.

When choosing the gear ratio, aim for a balance between speed increase, efficiency, and stability. Avoid overly large single-stage ratios, as they can lead to gear wear and reduced lifespan.

2.4 Evaluate Material and Build Quality

The material and build quality of a speed increaser gearbox directly impact its durability, performance, and lifespan. High-quality gearboxes are typically made from robust materials that can withstand high speeds, loads, and wear:

- Gear Materials: For medium to high-speed applications, alloy steels (e.g., 20CrMnTi, 40Cr) are preferred due to their high strength, wear resistance, and fatigue resistance. These materials are often heat-treated (carburizing and quenching) to enhance surface hardness (58~62HRC) while maintaining core toughness.

- Housing Materials: Cast iron or aluminum alloy housings provide good rigidity and heat dissipation. Cast iron is ideal for heavy-duty applications, while aluminum is lighter and suitable for applications with space constraints.

Look for gearboxes with precision machining and strict quality control to ensure smooth operation and minimal wear, especially at high speeds.

2.5 Assess Operational Environment

Your operational environment plays a significant role in selecting the right speed increaser gearbox. Consider factors such as:

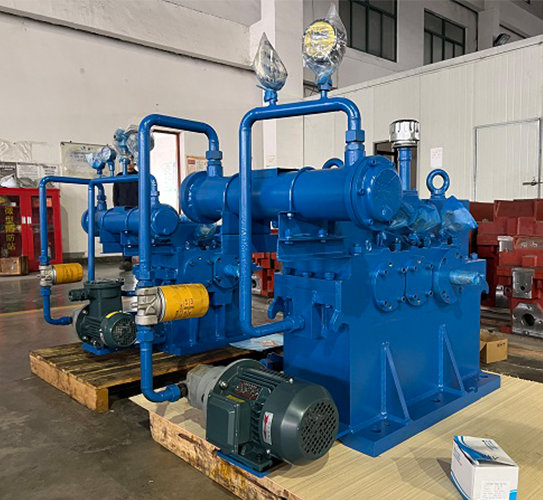

- Temperature: High-temperature environments (e.g., near furnaces or engines) require gearboxes with heat-resistant materials and effective cooling systems (e.g., cooling fans, oil coolers) to prevent overheating.

- Contamination: Environments with dust, dirt, or moisture (e.g., construction sites, agricultural fields) need gearboxes with sealed housings to protect internal components from damage.

- Vibration and Shock: Heavy-duty applications (e.g., construction machinery) require gearboxes with reinforced housings and shock-resistant gears to handle sudden loads and vibrations.

2.6 Check Efficiency and Maintenance Requirements

Efficiency is a key factor for reducing energy costs and improving productivity. A high-efficiency speed increaser gearbox (typically 85%~98%, depending on gear type and design) minimizes energy loss during speed conversion. Planetary and helical gearboxes are generally more efficient than spur gears at high speeds.

Additionally, consider maintenance requirements. Choose a gearbox that is easy to access for lubrication, inspection, and part replacement. Look for features like removable covers, easy-to-reach lubrication points, and clear maintenance instructions. Regular lubrication with the right type of oil or grease is critical for extending the gearbox’s lifespan, especially at high speeds.

3. Step-by-Step Guide to Selecting a Speed Increaser Gearbox

Now that you understand the key factors, follow this step-by-step guide to choose the right speed increaser gearbox for your equipment:

Step 1: Gather equipment specifications, including input speed, target output speed, power (HP/kW), and torque requirements. Calculate the required gear ratio using the formula: Gear Ratio = Input Speed / Output Speed (for speed increase, this ratio will be less than 1).

Step 2: Determine the gear type based on your speed range, load, space, and noise needs. For high-speed, high-efficiency applications, choose helical or planetary gears; for low-speed, light-load applications, spur gears may be sufficient.

Step 3: Select the number of stages (single or multi-stage) based on the required gear ratio. Opt for a single stage if possible to maximize efficiency.

Step 4: Choose a gearbox made from high-quality materials (alloy steel gears, cast iron/aluminum housing) that can withstand your operational environment.

Step 5: Verify the gearbox’s efficiency, maintenance requirements, and compatibility with your equipment. Check if it has the necessary cooling and sealing features for your environment.

Step 6: Consult with a reputable manufacturer or supplier to confirm your selection. They can provide expert advice based on your specific application and ensure the gearbox meets your needs.

4. Common Mistakes to Avoid

To ensure you choose the right speed increaser gearbox, avoid these common mistakes:

- Underestimating Torque Requirements: Failing to account for the reduced torque at high speeds can lead to gearbox overload and failure. Always ensure the gearbox can handle the required torque for your equipment.

- Ignoring Gearbox Efficiency: A low-efficiency gearbox wastes energy and increases operating costs. Prioritize gearboxes with high efficiency, especially for continuous operation.

- Neglecting the Operational Environment: Choosing a gearbox not suited for your environment (e.g., no sealed housing in a dusty area) will shorten its lifespan and increase maintenance costs.

- Using a Speed Reducer as a Speed Increaser: Not all speed reducers can be used as speed increasers. Worm gear reducers, for example, are often self-locking and cannot be used for speed increase. Stick to purpose-built speed increaser gearboxes or compatible helical/spur gear reducers.

5. Frequently Asked Questions (FAQs)

FAQ 1: Can I use a speed reducer as a speed increaser gearbox?

It depends on the gear type. Helical and spur gear reducers can sometimes be used as speed increasers within their design limits, but worm gear reducers and some cycloidal designs are self-locking and cannot be used for speed increase. Using a speed reducer outside its design range can lead to overheating, bearing failure, and reduced lifespan.

FAQ 2: What is the ideal gear ratio for a speed increaser gearbox?

The ideal gear ratio depends on your input and output speed requirements. For single-stage gearboxes, cylindrical gears are typically limited to a ratio of 1:5 (output speed 5 times the input speed) for stability. For larger speed increases, use multi-stage gearboxes, with each stage’s ratio balanced to avoid overloading any single gear set.

FAQ 3: How often should I maintain my speed increaser gearbox?

Maintenance frequency depends on usage and environment. For continuous high-speed operation, check lubrication levels every 100 hours and replace the oil every 500~1000 hours. Inspect gears and bearings for wear every 6 months, and clean the gearbox regularly to prevent contamination. Follow the manufacturer’s maintenance guidelines for best results.

6. Final Conclusion

Choosing the right speed increaser gearbox is critical for ensuring your equipment operates efficiently, reliably, and safely. By defining your speed, power, and torque requirements, selecting the right gear type and ratio, evaluating material quality and operational environment, and following a step-by-step selection process, you can find a speed increaser gearbox that meets your needs and provides long-term value.
